## 前言
|
|||
|
|
之前想使用UE4实现IOchair通过Blender晶格变形，实现的二次元角色面部透视矫正效果。在使用HLSL写了1/3晶格效果和IOchair沟通后，才发现这个功能只需要通过在摄像机坐标系下调整模型顶点的Z值即可。但要在Ue4的材质编辑器中实现这个功能就必须知道Ue4的VertexShader处理过程，于是我花了些时间研究了一下。
|
|||
|
|
|
|||
|
|
**效果实现思路**：
|
|||
|
|
一句话解释就是在模型的顶点坐标转换到摄像机坐标后，在乘以投影矩阵前对其Z值进行调整，以实现纸片人的效果。
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
参考了以下这篇文章：
|
|||
|
|
https://zhuanlan.zhihu.com/p/268433650?utm_source=ZHShareTargetIDMore
|
|||
|
|
|
|||
|
|
## IOchair的补充
|
|||
|
|
透视矫正的作用补充一下，还有：
|
|||
|
|
1. 减弱AO，空间扁了AO变浅，更二维
|
|||
|
|
2. 清理前发投影，刘海在额头上的投影变得整齐美观
|
|||
|
|
3. 顺滑高光，高光连续感更强
|
|||
|
|
|
|||
|
|

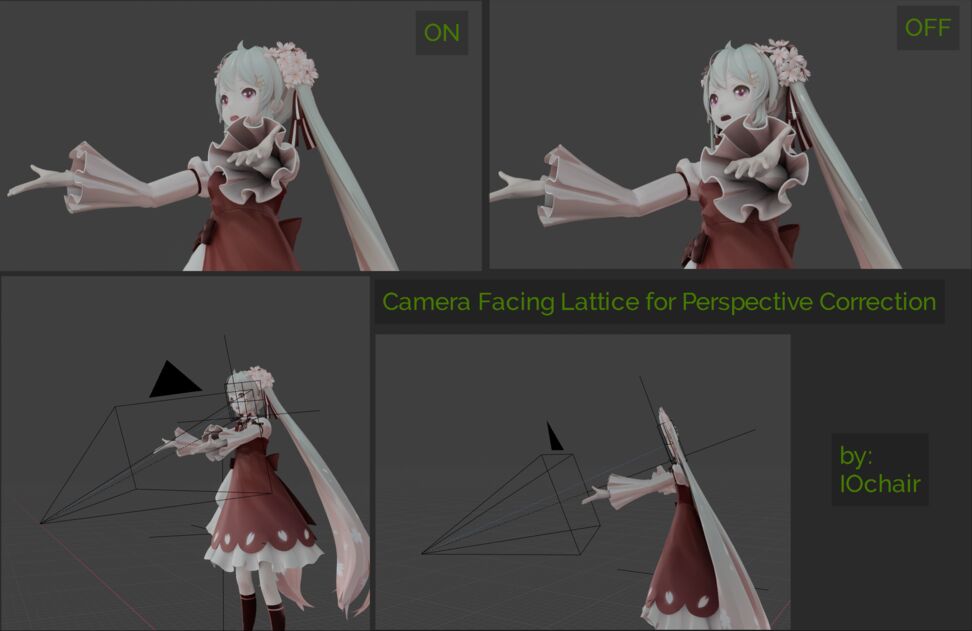

下图为IOchair的演示图：
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
个人认为：以上说法是建立在使用默认光照的情况，一般的卡通渲染都会选择重写光照来控制面部阴影表现。
|
|||
|
|
|
|||
|
|
## BasePassVertexShader
|
|||
|
|
代码位于BasePassVertexShader.usf中。可以看得出WorldPosition就是模型的世界坐标，WorldPositionExcludingWPO为没有WorldPositionOffset的版本。WorldPosition加上offset后，乘以MVP矩阵最后输出Output.Position。
|
|||
|
|
|
|||
|
|
以下是我精简过的代码以方便阅读：
|
|||
|
|
```hlsl
|
|||
|
|
/** Entry point for the base pass vertex shader. */
|
|||
|
|
void Main(
|
|||
|
|
FVertexFactoryInput Input,
|
|||
|
|
OPTIONAL_VertexID,
|
|||
|
|
out FBasePassVSOutput Output,
|
|||
|
|
out float OutGlobalClipPlaneDistance : SV_ClipDistance)
|
|||
|
|
{
|
|||
|
|
|
|||
|
|
uint EyeIndex = 0;
|
|||
|
|
ResolvedView = ResolveView();
|
|||
|
|
|
|||
|
|
FVertexFactoryIntermediates VFIntermediates = GetVertexFactoryIntermediates(Input);
|
|||
|
|
float4 WorldPositionExcludingWPO = VertexFactoryGetWorldPosition(Input, VFIntermediates);
|
|||
|
|
float4 WorldPosition = WorldPositionExcludingWPO;
|
|||
|
|
float4 ClipSpacePosition;
|
|||
|
|
|
|||
|
|
float3x3 TangentToLocal = VertexFactoryGetTangentToLocal(Input, VFIntermediates);
|
|||
|
|
FMaterialVertexParameters VertexParameters = GetMaterialVertexParameters(Input, VFIntermediates, WorldPosition.xyz, TangentToLocal);
|
|||
|
|
|
|||
|
|
// Isolate instructions used for world position offset
|
|||
|
|
// As these cause the optimizer to generate different position calculating instructions in each pass, resulting in self-z-fighting.
|
|||
|
|
// This is only necessary for shaders used in passes that have depth testing enabled.
|
|||
|
|
{
|
|||
|
|
WorldPosition.xyz += GetMaterialWorldPositionOffset(VertexParameters);
|
|||
|
|
}
|
|||
|
|
|
|||
|
|
{
|
|||
|
|
float4 RasterizedWorldPosition = VertexFactoryGetRasterizedWorldPosition(Input, VFIntermediates, WorldPosition);
|
|||
|
|
ClipSpacePosition = INVARIANT(mul(RasterizedWorldPosition, ResolvedView.TranslatedWorldToClip));
|
|||
|
|
Output.Position = INVARIANT(ClipSpacePosition);
|
|||
|
|
}
|
|||
|
|
|
|||
|
|
#if USE_GLOBAL_CLIP_PLANE
|
|||
|
|
OutGlobalClipPlaneDistance = dot(ResolvedView.GlobalClippingPlane, float4(WorldPosition.xyz - ResolvedView.PreViewTranslation.xyz, 1));
|
|||
|
|
#endif
|
|||
|
|
#if USE_WORLD_POSITION_EXCLUDING_SHADER_OFFSETS
|
|||
|
|
Output.BasePassInterpolants.PixelPositionExcludingWPO = WorldPositionExcludingWPO.xyz;
|
|||
|
|
#endif
|
|||
|
|
#endif
|
|||
|
|
Output.FactoryInterpolants = VertexFactoryGetInterpolants(Input, VFIntermediates, VertexParameters);
|
|||
|
|
|
|||
|
|
OutputVertexID( Output );
|
|||
|
|
}
|
|||
|
|
|
|||
|
|
```
|
|||
|
|
其他两个函数：
|
|||
|
|
```
|
|||
|
|
float4 VertexFactoryGetWorldPosition(FVertexFactoryInput Input, FVertexFactoryIntermediates Intermediates)
|
|||
|
|
{
|
|||
|
|
return TransformLocalToTranslatedWorld(Intermediates.UnpackedPosition);
|
|||
|
|
}
|
|||
|
|
|
|||
|
|
float4 VertexFactoryGetRasterizedWorldPosition(FVertexFactoryInput Input, FVertexFactoryIntermediates Intermediates, float4 InWorldPosition)
|
|||
|
|
{
|
|||
|
|
return InWorldPosition;
|
|||
|
|
}
|
|||
|
|
```
|
|||
|
|
|
|||
|
|
## 矩阵计算
|
|||
|
|
### TranslatedViewProjectMatrix
|
|||
|
|
以下是相关的计算代码：
|
|||
|
|
```c++
|
|||
|
|
ViewUniformShaderParameters.TranslatedWorldToClip = InViewMatrices.GetTranslatedViewProjectionMatrix();
|
|||
|
|
|
|||
|
|
inline const FMatrix& GetTranslatedViewProjectionMatrix() const
|
|||
|
|
{
|
|||
|
|
return TranslatedViewProjectionMatrix;
|
|||
|
|
}
|
|||
|
|
|
|||
|
|
TranslatedViewProjectionMatrix = GetTranslatedViewMatrix() * GetProjectionMatrix();
|
|||
|
|
|
|||
|
|
inline const FMatrix& GetTranslatedViewMatrix() const
|
|||
|
|
{
|
|||
|
|
return TranslatedViewMatrix;
|
|||
|
|
}
|
|||
|
|
|
|||
|
|
inline const FMatrix& GetProjectionMatrix() const
|
|||
|
|
{
|
|||
|
|
return ProjectionMatrix;
|
|||
|
|
}
|
|||
|
|
```
|
|||
|
|
|
|||
|
|
### Project矩阵
|
|||
|
|
UE4的矩阵与U3D使用的标准OPENGL式的矩阵不同：
|
|||
|
|
|
|||
|
|
1. OpenGL中Z坐标被映射到[-1, 1]。而Ue4映射到[0,1]，这使得"W"值变为1而不是-1。
|
|||
|
|
2. Ue4对其所有的透视矩阵应用了一个矩阵转置。
|
|||
|
|
|
|||
|
|
UE4 | Value | Unity | Value
|
|||
|
|
---|---|---|---
|
|||
|
|
[0,0]| 1.0f / FMath::Tan(HalfFOV) |[0,0]| 2.0F * near / (right - left);
|
|||
|
|
[1,1]| Width / FMath::Tan(HalfFOV) / Height| [1,1]| 2.0F * near / (top - bottom);
|
|||
|
|
[2,0]| 0.0F| [0,2] | (right + left) / (right - left);
|
|||
|
|
[2,1]| 0.0F| [1,2] | (top + bottom) / (top - bottom);
|
|||
|
|
[2,2]| ((MinZ == MaxZ) ? (1.0f - Z_PRECISION) : MaxZ / (MaxZ - MinZ))| [2,2]| -(far + near) / (far - near);
|
|||
|
|
[3,2]| -MinZ * ((MinZ == MaxZ) ? (1.0f - Z_PRECISION) : MaxZ / (MaxZ - MinZ)) | [2,3]| -(2.0F * far * near) / (far - near);
|
|||
|
|
[2,3]| 1.0f| [3,2]| -1.0f
|
|||
|
|
|
|||
|
|
#### 自定义投射矩阵效果
|
|||
|
|
继承ULocalPlayer类，重写CalcSceneView函数：
|
|||
|
|
```
|
|||
|
|
FSceneView * UOffAxisLocalPlayer::CalcSceneView(FSceneViewFamily * ViewFamily, FVector &OutViewLocation, FRotator &OutViewRotation, FViewport * Viewport, FViewElementDrawer * ViewDrawer, EStereoscopicPass StereoPass)
|
|||
|
|
{
|
|||
|
|
|
|||
|
|
FSceneView* View = ULocalPlayer::CalcSceneView(ViewFamily, OutViewLocation, OutViewRotation, Viewport, ViewDrawer, StereoPass);
|
|||
|
|
|
|||
|
|
if (View)
|
|||
|
|
{
|
|||
|
|
FMatrix CurrentMatrix = View->ViewMatrices.GetProjectionMatrix();
|
|||
|
|
|
|||
|
|
float FOV = FMath::DegreesToRadians(60.0f);
|
|||
|
|
FMatrix ProjectionMatrix = FReversedZPerspectiveMatrix(FOV, 16.0f, 9.0f, GNearClippingPlane);
|
|||
|
|
View->UpdateProjectionMatrix(ProjectionMatrix);
|
|||
|
|
}
|
|||
|
|
return View;
|
|||
|
|
}
|
|||
|
|
```
|
|||
|
|
最后在Project Settings->General Settings->Local Player Class设置定义的新类即可。
|
|||
|
|
|
|||
|
|
详细内容可以参考：http://www.geodesic.games/2019/03/27/projection-matrices-in-unreal-engine/<br>
|
|||
|
|
作者还写了插件：https://github.com/GeodesicGames/SimpleOffAxisProjection
|
|||
|
|
|
|||
|
|
#### 具体计算代码
|
|||
|
|
```
|
|||
|
|
/** Calculates the projection matrix using this view info's aspect ratio (regardless of bConstrainAspectRatio) */
|
|||
|
|
ENGINE_API FMatrix CalculateProjectionMatrix() const;
|
|||
|
|
FMatrix FMinimalViewInfo::CalculateProjectionMatrix() const
|
|||
|
|
{
|
|||
|
|
FMatrix ProjectionMatrix;
|
|||
|
|
ProjectionMatrix = FReversedZPerspectiveMatrix(
|
|||
|
|
FMath::Max(0.001f, FOV) * (float)PI / 360.0f,
|
|||
|
|
AspectRatio,
|
|||
|
|
1.0f,
|
|||
|
|
GNearClippingPlane );
|
|||
|
|
}
|
|||
|
|
```
|
|||
|
|
```
|
|||
|
|
FORCEINLINE FPerspectiveMatrix::FPerspectiveMatrix(float HalfFOV, float Width, float Height, float MinZ, float MaxZ)
|
|||
|
|
: FMatrix(
|
|||
|
|
FPlane(1.0f / FMath::Tan(HalfFOV), 0.0f, 0.0f, 0.0f),
|
|||
|
|
FPlane(0.0f, Width / FMath::Tan(HalfFOV) / Height, 0.0f, 0.0f),
|
|||
|
|
FPlane(0.0f, 0.0f, ((MinZ == MaxZ) ? (1.0f - Z_PRECISION) : MaxZ / (MaxZ - MinZ)), 1.0f),
|
|||
|
|
FPlane(0.0f, 0.0f, -MinZ * ((MinZ == MaxZ) ? (1.0f - Z_PRECISION) : MaxZ / (MaxZ - MinZ)), 0.0f)
|
|||
|
|
)
|
|||
|
|
{ }
|
|||
|
|
|
|||
|
|
FORCEINLINE FReversedZPerspectiveMatrix::FReversedZPerspectiveMatrix(float HalfFOV, float Width, float Height, float MinZ, float MaxZ)
|
|||
|
|
: FMatrix(
|
|||
|
|
FPlane(1.0f / FMath::Tan(HalfFOV), 0.0f, 0.0f, 0.0f),
|
|||
|
|
FPlane(0.0f, Width / FMath::Tan(HalfFOV) / Height, 0.0f, 0.0f),
|
|||
|
|
FPlane(0.0f, 0.0f, ((MinZ == MaxZ) ? 0.0f : MinZ / (MinZ - MaxZ)), 1.0f),
|
|||
|
|
FPlane(0.0f, 0.0f, ((MinZ == MaxZ) ? MinZ : -MaxZ * MinZ / (MinZ - MaxZ)), 0.0f)
|
|||
|
|
)
|
|||
|
|
{ }
|
|||
|
|
```
|
|||
|
|
|
|||
|
|
### View矩阵
|
|||
|
|
```
|
|||
|
|
void FViewMatrices::UpdateViewMatrix(const FVector& ViewLocation, const FRotator& ViewRotation)
|
|||
|
|
{
|
|||
|
|
ViewOrigin = ViewLocation;
|
|||
|
|
|
|||
|
|
FMatrix ViewPlanesMatrix = FMatrix(
|
|||
|
|
FPlane(0, 0, 1, 0),
|
|||
|
|
FPlane(1, 0, 0, 0),
|
|||
|
|
FPlane(0, 1, 0, 0),
|
|||
|
|
FPlane(0, 0, 0, 1));
|
|||
|
|
|
|||
|
|
const FMatrix ViewRotationMatrix = FInverseRotationMatrix(ViewRotation) * ViewPlanesMatrix;
|
|||
|
|
|
|||
|
|
ViewMatrix = FTranslationMatrix(-ViewLocation) * ViewRotationMatrix;
|
|||
|
|
|
|||
|
|
// Duplicate HMD rotation matrix with roll removed
|
|||
|
|
FRotator HMDViewRotation = ViewRotation;
|
|||
|
|
HMDViewRotation.Roll = 0.f;
|
|||
|
|
HMDViewMatrixNoRoll = FInverseRotationMatrix(HMDViewRotation) * ViewPlanesMatrix;
|
|||
|
|
|
|||
|
|
ViewProjectionMatrix = GetViewMatrix() * GetProjectionMatrix();
|
|||
|
|
|
|||
|
|
InvViewMatrix = ViewRotationMatrix.GetTransposed() * FTranslationMatrix(ViewLocation);
|
|||
|
|
InvViewProjectionMatrix = GetInvProjectionMatrix() * GetInvViewMatrix();
|
|||
|
|
|
|||
|
|
PreViewTranslation = -ViewOrigin;
|
|||
|
|
|
|||
|
|
TranslatedViewMatrix = ViewRotationMatrix;
|
|||
|
|
InvTranslatedViewMatrix = TranslatedViewMatrix.GetTransposed();
|
|||
|
|
OverriddenTranslatedViewMatrix = FTranslationMatrix(-PreViewTranslation) * ViewMatrix;
|
|||
|
|
OverriddenInvTranslatedViewMatrix = InvViewMatrix * FTranslationMatrix(PreViewTranslation);
|
|||
|
|
|
|||
|
|
// Compute a transform from view origin centered world-space to clip space.
|
|||
|
|
TranslatedViewProjectionMatrix = GetTranslatedViewMatrix() * GetProjectionMatrix();
|
|||
|
|
InvTranslatedViewProjectionMatrix = GetInvProjectionMatrix() * GetInvTranslatedViewMatrix();
|
|||
|
|
}
|
|||
|
|
```
|
|||
|
|
### 相关变量定义位置
|
|||
|
|
UE4已经帮我们计算好相关的矩阵，一些矩阵与摄像机相关变量位于一下文件中：
|
|||
|
|
```
|
|||
|
|
// SceneData.USH
|
|||
|
|
float4x4 LocalToWorld;
|
|||
|
|
float4x4 WorldToLocal;
|
|||
|
|
|
|||
|
|
// SceneView.cpp
|
|||
|
|
// ResolvedView
|
|||
|
|
ViewUniformShaderParameters.ViewToTranslatedWorld = InViewMatrices.GetOverriddenInvTranslatedViewMatrix();
|
|||
|
|
ViewUniformShaderParameters.TranslatedWorldToClip = InViewMatrices.GetTranslatedViewProjectionMatrix();
|
|||
|
|
ViewUniformShaderParameters.WorldToClip = InViewMatrices.GetViewProjectionMatrix();
|
|||
|
|
ViewUniformShaderParameters.ClipToWorld = InViewMatrices.GetInvViewProjectionMatrix();
|
|||
|
|
ViewUniformShaderParameters.TranslatedWorldToView = InViewMatrices.GetOverriddenTranslatedViewMatrix();
|
|||
|
|
ViewUniformShaderParameters.TranslatedWorldToCameraView = InViewMatrices.GetTranslatedViewMatrix();
|
|||
|
|
ViewUniformShaderParameters.CameraViewToTranslatedWorld = InViewMatrices.GetInvTranslatedViewMatrix();
|
|||
|
|
ViewUniformShaderParameters.ViewToClip = InViewMatrices.GetProjectionMatrix();
|
|||
|
|
ViewUniformShaderParameters.ViewToClipNoAA = InViewMatrices.GetProjectionNoAAMatrix();
|
|||
|
|
ViewUniformShaderParameters.ClipToView = InViewMatrices.GetInvProjectionMatrix();
|
|||
|
|
ViewUniformShaderParameters.ClipToTranslatedWorld = InViewMatrices.GetInvTranslatedViewProjectionMatrix();
|
|||
|
|
ViewUniformShaderParameters.ViewForward = InViewMatrices.GetOverriddenTranslatedViewMatrix().GetColumn(2);
|
|||
|
|
ViewUniformShaderParameters.ViewUp = InViewMatrices.GetOverriddenTranslatedViewMatrix().GetColumn(1);
|
|||
|
|
ViewUniformShaderParameters.ViewRight = InViewMatrices.GetOverriddenTranslatedViewMatrix().GetColumn(0);
|
|||
|
|
ViewUniformShaderParameters.InvDeviceZToWorldZTransform = InvDeviceZToWorldZTransform;
|
|||
|
|
ViewUniformShaderParameters.WorldViewOrigin = InViewMatrices.GetOverriddenInvTranslatedViewMatrix().TransformPosition(FVector(0)) - InViewMatrices.GetPreViewTranslation();
|
|||
|
|
ViewUniformShaderParameters.WorldCameraOrigin = InViewMatrices.GetViewOrigin();
|
|||
|
|
ViewUniformShaderParameters.TranslatedWorldCameraOrigin = InViewMatrices.GetViewOrigin() + InViewMatrices.GetPreViewTranslation();
|
|||
|
|
```
|
|||
|
|
|
|||
|
|
### 具体实现与效果
|
|||
|
|
将这个Custom节点直接连到WorldPositionOffset即可。
|
|||
|
|
```
|
|||
|
|
//float3 WorldPosition
|
|||
|
|
//float ZClampValue
|
|||
|
|
//float3 ObjectPosition
|
|||
|
|
|
|||
|
|
// const float4x4 localToWorld=Primitive.LocalToWorld;
|
|||
|
|
const float4x4 WorldToView=ResolvedView.TranslatedWorldToView;
|
|||
|
|
const float4x4 ViewToWorld=ResolvedView.ViewToTranslatedWorld;
|
|||
|
|
|
|||
|
|
float3 ViewSpacePosition=INVARIANT(mul(WorldPosition, WorldToView));
|
|||
|
|
float pivortZ=INVARIANT(mul(ObjectPosition, WorldToView)).z;
|
|||
|
|
ViewSpacePosition.z=(ViewSpacePosition.z-pivortZ)/ZClampValue+pivortZ;
|
|||
|
|
return INVARIANT(mul(ViewSpacePosition,ViewToWorld))-WorldPosition;
|
|||
|
|
```
|
|||
|
|
|
|||
|
|
这里我使用原神中莫娜作为演示模型，使用的是Unlit自发光材质：
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|

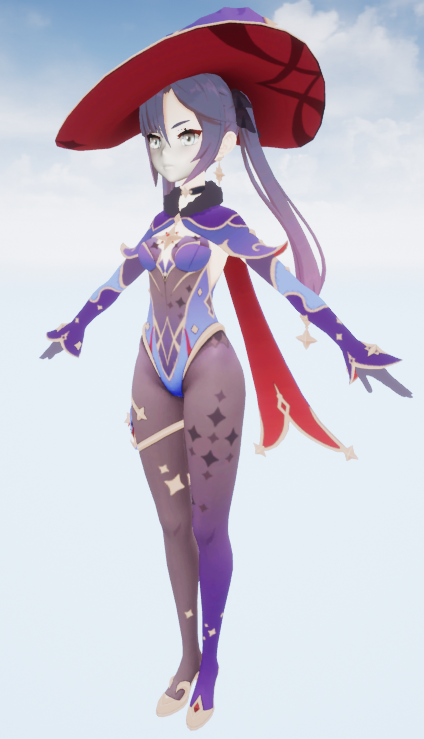

原始模型
|
|||
|
|
|
|||
|
|
|
|||
|
|

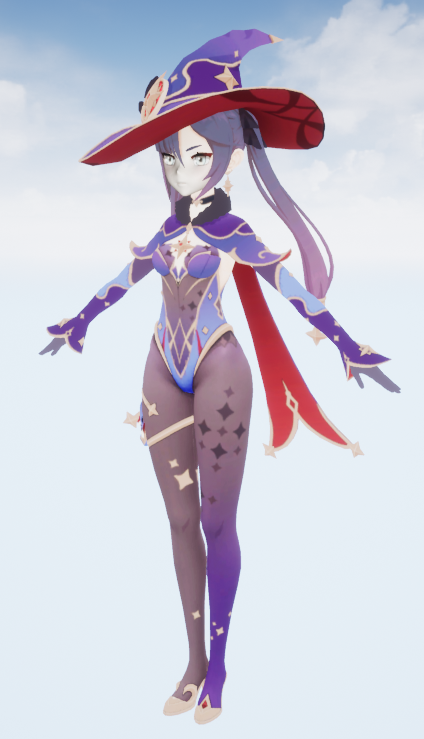

缩放0.5
|
|||
|
|
|
|||
|
|
|
|||
|
|
缩放0.3
|
|||
|
|
|
|||
|
|
|
|||
|
|
缩放0.2
|
|||
|
|
|
|||
|
|
## 思考与改进
|
|||
|
|
这个压扁操作本质上为了降低模型的透视效果，使得角色的脸部更加的平面化。但目前这个做法比较粗暴，还有很大的改进空间：
|
|||
|
|
|
|||
|
|
1. 我们只需要调整角色脸面向相机且较为靠近相机的顶点。
|
|||
|
|
2. 透视效果与fov、相机坐标下模型的Z具有线性关系，可以根据这些关系来调整“压扁值”。
|
|||
|
|
3. 调整的方向是鼻子、嘴、眼睛等具有重点轮廓区域。不对脸部进行较大数值的调整，使得阴影不会产生较大的形变。
|
|||
|
|
|
|||
|
|
### 重新计算法线
|
|||
|
|
IOchair通过Blender晶格变形实现该效果的。而DCC工具中的晶格变形会重建顶点法线。所以我也需要在UE4中实现这个功能。经过404查询，得知在GPU精粹有中解决方法：
|
|||
|
|
|
|||
|
|
1. 微分附近顶点求得法线。
|
|||
|
|
2. 使用雅可比矩阵。
|
|||
|
|
|
|||
|
|
第一种方法比较简单，只需要通过ddx与ddy计算WorldPosition，即可得到切线法线值。
|
|||
|
|
第二种方法我会在学习之后补上。
|
|||
|
|
|
|||
|
|
回顾第一种方法时还找到有意思的资料：
|
|||
|
|
- 通过ddx、ddy与Cross去除平滑法线效果：
|
|||
|
|
|
|||
|
|
|
|||
|
|
https://answers.unrealengine.com/questions/29087/disable-terrain-smoothing.html#answer-30100
|
|||
|
|
|
|||
|
|
- 通过Noise生成世界法线的方法：
|
|||
|
|
|
|||
|
|
https://odederell3d.blog/tag/ddy/
|
|||
|
|
|
|||
|
|
PS.晶格变形用的是FreeFormDeformation算法，直接搜索Lattice Deformation是找不到资料的。
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
### 3.3.1 视场(Field of View)的影响
|
|||
|
|
先来解释一下视场，视场即FOV，在摄影中指相机可以接收影像的角度范围，也可以称为视野。
|
|||
|
|
> 由于显示比例的原因，FOV在水平与垂直方向上的数值不同，以下未作说明的情况下默认为水平FOV。
|
|||
|
|
|
|||
|
|
FOV越大视野越宽，透视的变形就越大，下图可以很好的展示这种特征。
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
How Focal Length Affects Viewing Angle
|
|||
|
|
|
|||
|
|
下图是人眼的水平视场的范围示意，±30°是中央视野区域，±60°是双眼水平视场。所以游戏中的FOV也遵循这个规则，能够修改的范围通常都在60 - 120之间。
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
人眼的水平视场能力(Horizontal Field of View, FOV)
|
|||
|
|
而FOV的高低会很大程度上的会影响角色表现，特别是特写时的面部区域。卡通角色更适用于在较低的FOV中表现效果，而第三人称视角中通常使用到的FOV数值要远大于适合卡通表现的FOV。
|
|||
|
|
下面的视频中是 5 - 60 之间的 FOV (Vertical) 变换，可以明显的看出FOV变化时面部轮廓的变形。
|
|||
|
|
_5 - 60的 FOV (Vertical)，在16 : 9的显示比例下，换算成水平FOV是 8.88 - 91.52 之间_
|
|||
|
|
很多卡通角色的模型在制作时面部正面会选择做扁，一部分原因就是为了抵消高FOV带来的面部轮廓变形。
|
