GlobalConfig

功能描述： 和Config一样指定该属性可作为配置读取和写入ini中，但只会读取写入到配置文件里基类的值，而不会使用配置文件里子类里的值。
元数据类型： bool
引擎模块： Config
作用机制： 在PropertyFlags中加入CPF_GlobalConfig
常用程度： ★★★

和Config一样指定该属性可作为配置读取和写入ini中，但只会读取写入到配置文件里基类的值，而不会使用配置文件里子类里的值。

但是不同点在于，该属性在LoadConfig的时候，只会读取基类的ini，而不会去读取子类的ini。因为只有基类里的Ini设置在生效，相当于全局只有一个配置在生效，因此名字叫做GlobalConfig。

示例代码：

UCLASS(Config = MyOtherGame)
class INSIDER_API UMyProperty_Config :public UObject
{
	GENERATED_BODY()
public:
	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	int32 MyProperty = 123;
	UPROPERTY(EditAnywhere, BlueprintReadWrite, Config)
	int32 MyPropertyWithConfig = 123;
	UPROPERTY(EditAnywhere, BlueprintReadWrite, GlobalConfig)
	int32 MyPropertyWithGlobalConfig = 123;
};

UCLASS(Config = MyOtherGame)
class INSIDER_API UMyProperty_Config_Child :public UMyProperty_Config
{
	GENERATED_BODY()
public:
};

void UMyProperty_Config_Test::TestConfigSave()
{
	FString fileName = FPaths::ProjectConfigDir() / TEXT("MyOtherGame.ini");
	fileName = FConfigCacheIni::NormalizeConfigIniPath(fileName);

	{
		UMyProperty_Config* testObject = NewObject<UMyProperty_Config>(GetTransientPackage(), TEXT("testObject"));

		testObject->MyProperty = 777;
		testObject->MyPropertyWithConfig = 777;
		testObject->MyPropertyWithGlobalConfig = 777;

		testObject->SaveConfig(CPF_Config, *fileName);
	}

	{
		UMyProperty_Config_Child* testObject = NewObject<UMyProperty_Config_Child>(GetTransientPackage(), TEXT("testObjectChild"));

		testObject->MyProperty = 888;
		testObject->MyPropertyWithConfig = 888;
		testObject->MyPropertyWithGlobalConfig = 888;

		testObject->SaveConfig(CPF_Config, *fileName);
	}
}

void UMyProperty_Config_Test::TestConfigLoad()
{
	FString fileName = FPaths::ProjectConfigDir() / TEXT("MyOtherGame.ini");
	fileName = FConfigCacheIni::NormalizeConfigIniPath(fileName);

	UMyProperty_Config* testObject = NewObject<UMyProperty_Config>(GetTransientPackage(), TEXT("testObject"));
	testObject->LoadConfig(nullptr, *fileName);

	UMyProperty_Config_Child* testObjectChild = NewObject<UMyProperty_Config_Child>(GetTransientPackage(), TEXT("testObjectChild"));
	testObjectChild->LoadConfig(nullptr, *fileName);
}

示例效果：

TestConfigSave之后，MyPropertyWithGlobalConfig=888，可见保存的时候也只会保存在基类上。

[/Script/Insider.MyProperty_Config]
MyPropertyWithConfig=777
MyPropertyWithGlobalConfig=888

[/Script/Insider.MyProperty_Config_Child]
MyPropertyWithConfig=888

为了测试，假如手动把配置里的值改为：然后再进行TestConfigLoad测试

[/Script/Insider.MyProperty_Config]
MyPropertyWithConfig=777
MyPropertyWithGlobalConfig=888

[/Script/Insider.MyProperty_Config_Child]
MyPropertyWithConfig=888
MyPropertyWithGlobalConfig=999

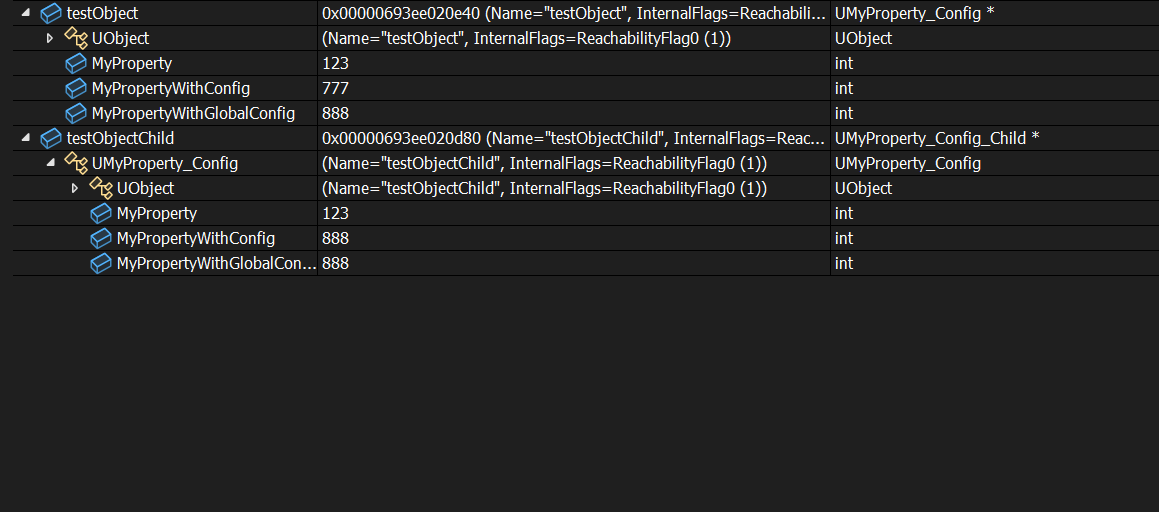

显示效果：

可见testObjectChild 的值并没有使用ini里MyProperty_Config_Child下的999的值，而是同样的888.

原理：

如果是bGlobalConfig ，会采用基类。

void UObject::LoadConfig( UClass* ConfigClass/*=NULL*/, const TCHAR* InFilename/*=NULL*/, uint32 PropagationFlags/*=LCPF_None*/, FProperty* PropertyToLoad/*=NULL*/ )
{
		const bool bGlobalConfig = (Property->PropertyFlags&CPF_GlobalConfig) != 0;
		UClass* OwnerClass = Property->GetOwnerClass();

		UClass* BaseClass = bGlobalConfig ? OwnerClass : ConfigClass;
		if ( !bPerObject )
		{
			ClassSection = BaseClass->GetPathName();
			LongCommitName = BaseClass->GetOutermost()->GetFName();

			// allow the class to override the expected section name
			OverrideConfigSection(ClassSection);
		}

		// globalconfig properties should always use the owning class's config file
		// specifying a value for InFilename will override this behavior (as it does with normal properties)
		const FString& PropFileName = (bGlobalConfig && InFilename == NULL) ? OwnerClass->GetConfigName() : Filename;
}
