UE4.26 SingleLayerWater笔记
官方论坛讨论
SingleLayerCommon.ush
计算光照强度、透明度。 struct WaterVolumeLightingOutput { float3 Luminance; float3 WaterToSceneTransmittance; float3 WaterToSceneToLightTransmittance; };
Output.Luminance = WaterVisibility * (ScatteredLuminance + Transmittance * BehindWaterSceneLuminance); Output.WaterToSceneTransmittance = Transmittance; Output.WaterToSceneToLightTransmittance;
目前没有开启RayMarching,所以核心代码为：
const float3 OpticalDepth = ExtinctionCoeff * BehindWaterDeltaDepth;
float3 Transmittance = exp(-OpticalDepth);
float3 ScatteredLuminance = ScatteringCoeff * (AmbScattLuminance + SunScattLuminance * DirectionalLightShadow);
ScatteredLuminance = (ScatteredLuminance - ScatteredLuminance * Transmittance) / ExtinctionCoeffSafe;
// Apply Fresnel effect to out-scattering towards the view
ScatteredLuminance *= CameraIsUnderWater ? 1.0 : (1.0 - EnvBrdf); // Under water is less visible due to Fresnel effect
Transmittance *= CameraIsUnderWater ? (1.0 - EnvBrdf) : 1.0; // Above " " " " "
// Add single in-scattering apply colored transmittance to scene color
Output.Luminance = WaterVisibility * (ScatteredLuminance + Transmittance * (BehindWaterSceneLuminance* ColorScaleBehindWater));
Output.WaterToSceneTransmittance = Transmittance;
Output.WaterToSceneToLightTransmittance = Transmittance * MeanTransmittanceToLightSources;
const float BehindWaterDeltaDepth = CameraIsUnderWater ? WaterDepth : max(0.0f, SceneDepth - WaterDepth);
const float3 ScatteringCoeff = max(0.0f, GetSingleLayerWaterMaterialOutput0(MaterialParameters));
const float3 AbsorptionCoeff = max(0.0f, GetSingleLayerWaterMaterialOutput1(MaterialParameters));
const float PhaseG = clamp(GetSingleLayerWaterMaterialOutput2(MaterialParameters), -1.0f, 1.0f);
//Sample the optional Material Input ColorScaleBehindWater and fade it out at shorelines to avoid hard edge intersections
float3 ColorScaleBehindWater = lerp(1.0f, max(0.0f, GetSingleLayerWaterMaterialOutput3(MaterialParameters)), saturate(BehindWaterDeltaDepth * 0.02f));
const float3 ExtinctionCoeff = ScatteringCoeff + AbsorptionCoeff;
// Max to avoid division by 0 with the analytical integral below.
// 1e-5 is high enough to avoid denorms on mobile
const float3 ExtinctionCoeffSafe = max(ScatteringCoeff + AbsorptionCoeff, 1e-5);
float DirLightPhaseValue = 0.0f; // Default when Total Internal Reflection happens.
{
#if SIMPLE_SINGLE_LAYER_WATER
DirLightPhaseValue = IsotropicPhase();
#else
float IorFrom = 1.0f; // assumes we come from air
float IorTo = DielectricF0ToIor(DielectricSpecularToF0(Specular)); // Wrong if metal is set to >1. But we still keep refraction on the water surface nonetheless.
const float relativeIOR = IorFrom / IorTo;
float3 UnderWaterRayDir = 0.0f;
if (WaterRefract(MaterialParameters.CameraVector, MaterialParameters.WorldNormal, relativeIOR, UnderWaterRayDir))
{
DirLightPhaseValue = SchlickPhase(PhaseG, dot(-ResolvedView.DirectionalLightDirection.xyz, UnderWaterRayDir));
}
#endif
}
// We also apply transmittance from light to under water surface. However, the scene has been lit by many sources already.
// So the transmittance toabove surface is simply approximated using the travel distance from the scene pixel to the water top, assuming a flat water surface.
// We cannot combine this transmittance with the transmittance from view because this would change the behavior of the analytical integration of light scattering integration.
const float3 BehindWaterSceneWorldPos = SvPositionToWorld(float4(MaterialParameters.SvPosition.xy, SceneDeviceZ, 1.0));
const float DistanceFromScenePixelToWaterTop = max(0.0, MaterialParameters.AbsoluteWorldPosition.z - BehindWaterSceneWorldPos.z);
const float3 MeanTransmittanceToLightSources = exp(-DistanceFromScenePixelToWaterTop * ExtinctionCoeff);
#if SIMPLE_SINGLE_LAYER_WATER
const float3 BehindWaterSceneLuminance = 0.0f; // Cannot read back the scene color in this case
#else
// We use the pixel SvPosition instead of the scene one pre refraction/distortion to avoid those extra ALUs.
float3 BehindWaterSceneLuminance = SceneColorWithoutSingleLayerWaterTexture.SampleLevel(SceneColorWithoutSingleLayerWaterSampler, ViewportUV, 0).rgb;
BehindWaterSceneLuminance = MeanTransmittanceToLightSources * (USE_PREEXPOSURE ? ResolvedView.OneOverPreExposure : 1.0f) * BehindWaterSceneLuminance;
#endif
float3 SunScattLuminance = DirLightPhaseValue * SunIlluminance;
float3 AmbScattLuminance = IsotropicPhase() * AmbiantIlluminance;
#define VOLUMETRICSHADOW 0
#if !VOLUMETRICSHADOW || SIMPLE_SINGLE_LAYER_WATER
const float3 OpticalDepth = ExtinctionCoeff * BehindWaterDeltaDepth;
float3 Transmittance = exp(-OpticalDepth);
float3 ScatteredLuminance = ScatteringCoeff * (AmbScattLuminance + SunScattLuminance * DirectionalLightShadow);
ScatteredLuminance = (ScatteredLuminance - ScatteredLuminance * Transmittance) / ExtinctionCoeffSafe;
#else
// TODO Make the volumetric shadow part work again
float3 Transmittance = 1.0f;
float3 ScatteredLuminance = 0.0f;
const float RayMarchMaxDistance = min(BehindWaterDeltaDepth, 200.0f); // 20 meters
const float RayMarchStepSize = RayMarchMaxDistance / 10.0f; // Less samples wil lresult in a bit brighter look due to TransmittanceToLightThroughWater being 1 on a longer first sample. Would need it part of analiytical integration
const float ShadowDither = RayMarchStepSize * GBufferDither;
for (float s = 0.0f; s < RayMarchMaxDistance; s += RayMarchStepSize)
{
// Only jitter shadow map sampling to not lose energy on first sample
float Shadow = ComputeDirectionalLightDynamicShadowing(MaterialParameters.AbsoluteWorldPosition - (s + ShadowDither)*MaterialParameters.CameraVector, GBuffer.Depth);
float3 WP = MaterialParameters.AbsoluteWorldPosition - s * MaterialParameters.CameraVector;
float WaterHeightAboveSample = max(0.0, MaterialParameters.AbsoluteWorldPosition.z - WP.z);
float3 TransmittanceToLightThroughWater = 1.0; // no self shadow, same energy as above analytical solution
//float3 TransmittanceToLightThroughWater = exp(-ExtinctionCoeff * WaterHeightAboveSample); // self shadow as transmittance to water level, close to reference, depends a bit on sample count due to first sample being critical for dense medium
float3 SampleTransmittance = exp(-ExtinctionCoeff * RayMarchStepSize); // Constant
float3 SS = (ScatteringCoeff * TransmittanceToLightThroughWater * (SunScattLuminance * Shadow + AmbScattLuminance));
ScatteredLuminance += Transmittance * (SS - SS * SampleTransmittance) / ExtinctionCoeffSafe;
Transmittance *= SampleTransmittance;
}
// The rest of the medium
const float3 OpticalDepth2 = ExtinctionCoeff * max(0.0, BehindWaterDeltaDepth - RayMarchMaxDistance);
if (any(OpticalDepth2 > 0.0f))
{
float3 Transmittance2 = exp(-OpticalDepth2);
float3 ScatteredLuminance2 = ScatteringCoeff * (SunScattLuminance + AmbScattLuminance);
ScatteredLuminance += Transmittance * (ScatteredLuminance2 - ScatteredLuminance2 * Transmittance2) / ExtinctionCoeffSafe;
Transmittance *= Transmittance2;
}
#endif
// Apply Fresnel effect to out-scattering towards the view
ScatteredLuminance *= CameraIsUnderWater ? 1.0 : (1.0 - EnvBrdf); // Under water is less visible due to Fresnel effect
Transmittance *= CameraIsUnderWater ? (1.0 - EnvBrdf) : 1.0; // Above " " " " "
// Add single in-scattering apply colored transmittance to scene color
Output.Luminance = WaterVisibility * (ScatteredLuminance + Transmittance * (BehindWaterSceneLuminance* ColorScaleBehindWater));
Output.WaterToSceneTransmittance = Transmittance;
Output.WaterToSceneToLightTransmittance = Transmittance * MeanTransmittanceToLightSources;
}
海洋是不透明的，使用SceneColor缓存合成出的透明效果。
GDC2012 神秘海域3演讲
渲染方案
FlowShader
没看懂，为什么需要用2张贴图叠加，是因为要过度么？
4.5.1.1 Flow Map变体：《神秘海域3》Flow Map + Displacement
另外，Flow Map可以和其他渲染技术结合使用，比如《神秘海域3》中的Flow Map + Displacement：
4.5.1.2 Flow Map变体：《堡垒之夜》Flow Map + Distance Fields + Normal Maps 以及《堡垒之夜》中的Flow Map + Distance Fields + Normal Maps [GDC 2019, Technical Artist Bootcamp Distance Fields and Shader Simulation Tricks]
4.5.1.3 Flow Map变体：《神秘海域4》Flow Map + Wave Particles 或者《神秘海域4》中的Flow Map + Wave Particles[SIGGRAPH 2016, Rendering Rapids in Uncharted 4]，都是进阶模拟水体表面流动与起伏效果的不错选择。
Wave System
如果我们能找到一个好的模型，程序化的几何和动画是不错的。 仿真计算成本太高（即使在SPU中），设计者也很难控制。 Perlin噪音效果在视觉上不是很好，往往看起来很人工化 FFT技术很好，但是参数很难被艺术家控制和调整。也是很难搞好的
Gerstner waves 简单易于控制效果，但高频细节不够多，只能叠加几组大浪，否则太消耗资源。
FFT Waves 真实，细节丰富。但是美术难以控制效果。

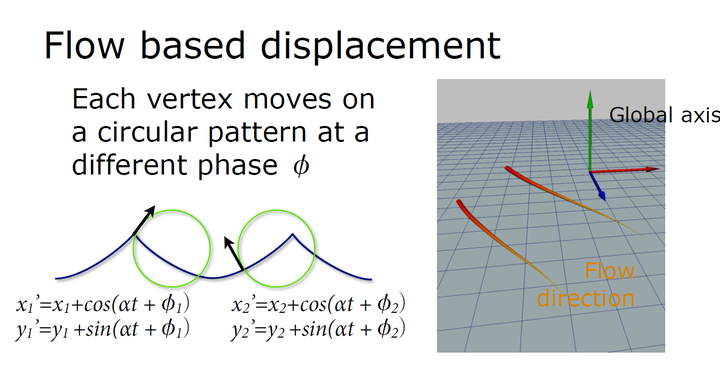

神秘海域3采用4组Gerstner waves+4组波动粒子的方式来实现Wave Vector Displacement。
大浪
大浪采用贝塞尔曲线建模完成 之后再叠加大浪。
这是整个波系的局部公式。 bspline是一个均匀的、非理性的bspline。我们本可以使用贝塞尔，但它需要更多的代码。 grid(u,v)函数返回一个给定坐标u,v的标量值。在这种情况下，我们有一个波标的乘数
Sea of Thieves approach [Ang, 2018]
Crest Siggraph2019
Light Scattering
使用了类似盗贼之海的光线散射算法，光线散射项是基于海面置换项的水平长度。这里补充一下：使它在我们的框架中更好地工作--我们通过将置换项除以波长来做一种特殊的归一化，并将这个归一化版本用于光散射项。
基于海平面高度的散射在海洋参数发生改变时容易出问题。
如果将置换项除以波长，就可以针对大波与小波进行缩放。
Shadering
Cascade scale used to scale shading inputs Normals Foam Underwater bubbles Works for range of viewpoints Breaks up patterns Combats mipmapping Increase visible range of detail Doubles texture samples
