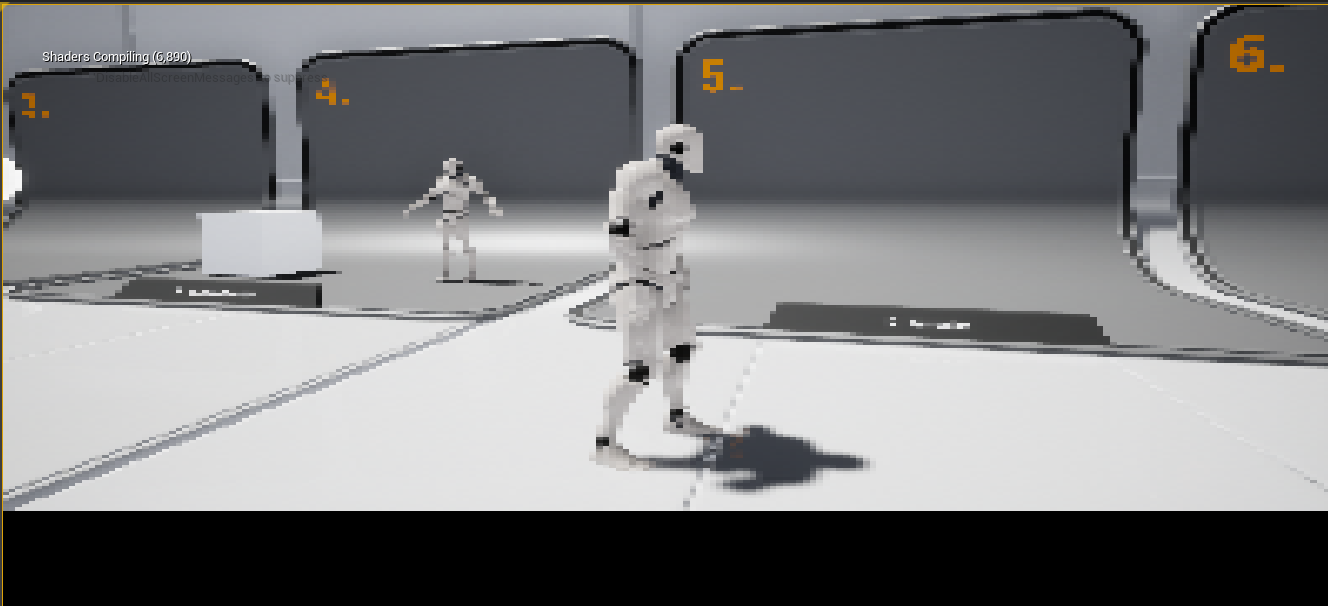

早几年学习后处理Shader的时候，遇到编辑器视口中的渲染结果与视口大小不匹配的问题：
|
||
|
||
|
||
PS.该问题不会在使用SceneTexture节点制作的后处理效果材质中发生。但它不易于维护与修改。所以我花了些时间来解决这个问题。
|
||
|
||
## 问题成因与解决方法
|
||
可以看得出这个问题是因为ViewSize与BufferSize不一造成的。经过一系列测试使用ViewportUVToBufferUV()对UV坐标进行转换就可以解决问题，该函数位于Common.h。
|
||
```c#
|
||
float2 ViewportUVToBufferUV(float2 ViewportUV)
|
||
{
|
||
float2 PixelPos = ViewportUV * View.ViewSizeAndInvSize.xy;
|
||
return (PixelPos + View.ViewRectMin.xy) * View.BufferSizeAndInvSize.zw;
|
||
}
|
||
```
|
||
ScreenUV使用GetViewportUV(Parameters)来获取，Step为ResolvedView.ViewSizeAndInvSize.zw，用法大致如下：
|
||
```c#
|
||
float GetDepthTestWeight(float2 ScreenUV,float Stepx, float Stepy, float3x3 KernelX, float3x3 KernelY,float DepthTestThreshold)
|
||
{
|
||
float3x3 image;
|
||
float CurrentPixelDepth=GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV)).GBuffer.Depth;
|
||
image = float3x3(
|
||
length(GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV + float2(-Stepx,Stepy))).GBuffer.Depth-CurrentPixelDepth),
|
||
length(GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV + float2(0,Stepy))).GBuffer.Depth-CurrentPixelDepth),
|
||
length(GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV + float2(Stepx,Stepy))).GBuffer.Depth-CurrentPixelDepth),
|
||
length(GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV + float2(-Stepx,0))).GBuffer.Depth-CurrentPixelDepth),
|
||
0,
|
||
length(GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV + float2(Stepx,0))).GBuffer.Depth-CurrentPixelDepth),
|
||
length(GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV + float2(-Stepx,-Stepy))).GBuffer.Depth-CurrentPixelDepth),
|
||
length(GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV + float2(0,-Stepy))).GBuffer.Depth-CurrentPixelDepth),
|
||
length(GetScreenSpaceData(ViewportUVToBufferUV(ScreenUV + float2(Stepx,-Stepy))).GBuffer.Depth-CurrentPixelDepth)
|
||
);
|
||
|
||
UNROLL
|
||
for (int i = 0; i < 3; i++) {
|
||
for (int j = 0; j < 3; j++) {
|
||
// image[i][j] = image[i][j] > CurrentPixelDepth * DepthTestThreshold ? 1 : 0;
|
||
image[i][j] = saturate(image[i][j] / (CurrentPixelDepth * DepthTestThreshold));
|
||
}
|
||
}
|
||
|
||
float2 StrokeWeight;
|
||
StrokeWeight.x = convolve(KernelX, image);
|
||
StrokeWeight.y = convolve(KernelY, image);
|
||
|
||
return length(StrokeWeight);
|
||
}
|
||
```
|
||
|
||
当然如果是直接在渲染管线里添加渲染Pass的方式来实现后处理效果，那也不会出现这个问题，因为每帧都会按照View大小创建新的buffer，所以不会出现这个问题。
|
||
|
||
## 材质编辑器的相关大小节点。
|
||
- ScreenPosition：代码为GetViewportUV(FMaterialVertexParameters Parameters)。
|
||
- ViewSize：可视视口的大小。代码为View.ViewSizeAndInvSize.xy，zw为倒数值。
|
||
- MF_ScreenResolution：具体有VisibleResolution(就是ViewSize节点输出结果) 与BufferResolution(ViewProperty的RenderTargetSize)
|
||
- SceneTexelSize（场景纹素大小）：这是一个float2的值，对应着UV，（u，v），uv均为正数。
|
||
- MF_ScreenAlignedPixelToPixelUVs：RenderTargetSize / TextureSize。 其中TextureSize可以是ViewSize。可以用来实现一些修改View大小后，后处理尺寸不变得效果。
|
||
- 后处理节点的Size：ClampSceneTextureUV(ViewportUVToSceneTextureUV，SceneTextureId) |
