LinearDeltaSensitivity

• 功能描述： 在设定Delta后，进一步设定数字输入框变成线性改变以及改变的敏感度（值越大越不敏感）
• 使用位置： UPROPERTY
• 引擎模块： Numeric Property
• 元数据类型： float/int
• 限制类型： float,int32
• 关联项： Delta
• 常用程度： ★★★

生效的条件：

1. 先设置Delta>0
2. 不设置UIMin, UIMax
3. 设定LinearDeltaSensitivity >0

测试代码：

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = DeltaTest, meta = (UIMin = "0", UIMax = "1000", Delta = 10))
	float MyFloat_Delta10_UIMinMax = 100;
	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = DeltaTest, meta = (Delta = 10, LinearDeltaSensitivity = 50))
	float MyFloat_Delta10_LinearDeltaSensitivity50 = 100;
	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = DeltaTest, meta = (UIMin = "0", UIMax = "1000", Delta = 10, LinearDeltaSensitivity = 50))
	float MyFloat_Delta10_LinearDeltaSensitivity50_UIMinMax = 100;

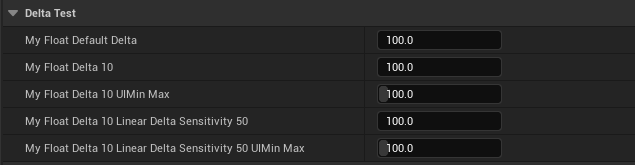

测试效果：

效果解析请参见：Delta的解析

原理：

可见只有没有UIMinMax且已经设置Delta后才能走进线性改变的代码分支。

, _Delta(0)
virtual FReply SSpinBox<NumericType>::OnMouseMove(const FGeometry& MyGeometry, const FPointerEvent& MouseEvent) override
{
		if (bUnlimitedSpinRange)
		{
				// If this control has a specified delta and sensitivity then we use that instead of the current value for determining how much to change.
				const double Sign = (MouseEvent.GetCursorDelta().X > 0) ? 1.0 : -1.0;

				if (LinearDeltaSensitivity.IsSet() && LinearDeltaSensitivity.Get() != 0 && Delta.IsSet() && Delta.Get() > 0)
				{
								const double MouseDelta = FMath::Abs(MouseEvent.GetCursorDelta().X / (float)LinearDeltaSensitivity.Get());
								NewValue = InternalValue + (Sign * MouseDelta * FMath::Pow((double)Delta.Get(), (double)SliderExponent.Get())) * Step;
				}
				else
				{
								const double MouseDelta = FMath::Abs(MouseEvent.GetCursorDelta().X / SliderWidthInSlateUnits);
								const double CurrentValue = FMath::Clamp<double>(FMath::Abs(InternalValue), 1.0, (double)std::numeric_limits<NumericType>::max());
								NewValue = InternalValue + (Sign * MouseDelta * FMath::Pow((double)CurrentValue, (double)SliderExponent.Get())) * Step;
				}
		}
}
